PDF / ENGLISH

KD3500 — Articulated frame

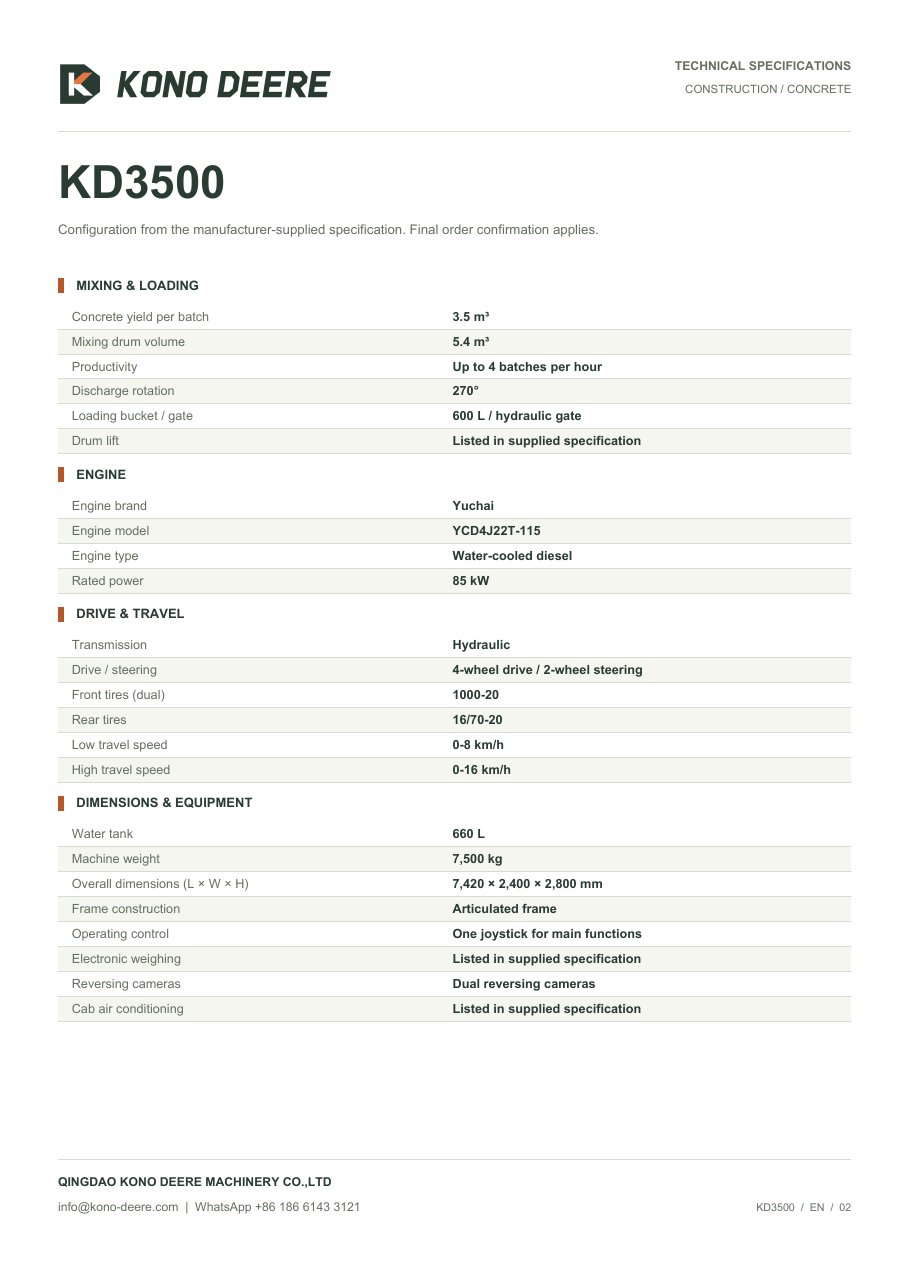

KD3500 articulated-frame self-loading concrete mixer: 3.5 m³ concrete yield per batch, 5.4 m³ drum, 85 kW Yuchai YCD4J22T-115 diesel engine, 660 L water tank and 7,500 kg machine weight. Front dual tires and rear tires have separate specifications.
