KONO DEERE / KD30-25B
Backhoe Loader3,000 kg · Rated load
KD30-25B backhoe loader with a 3,000 kg rated loading capacity, 100 HP engine and 4,345 mm maximum digging depth.
01 / KD30-25B
KD30-25B

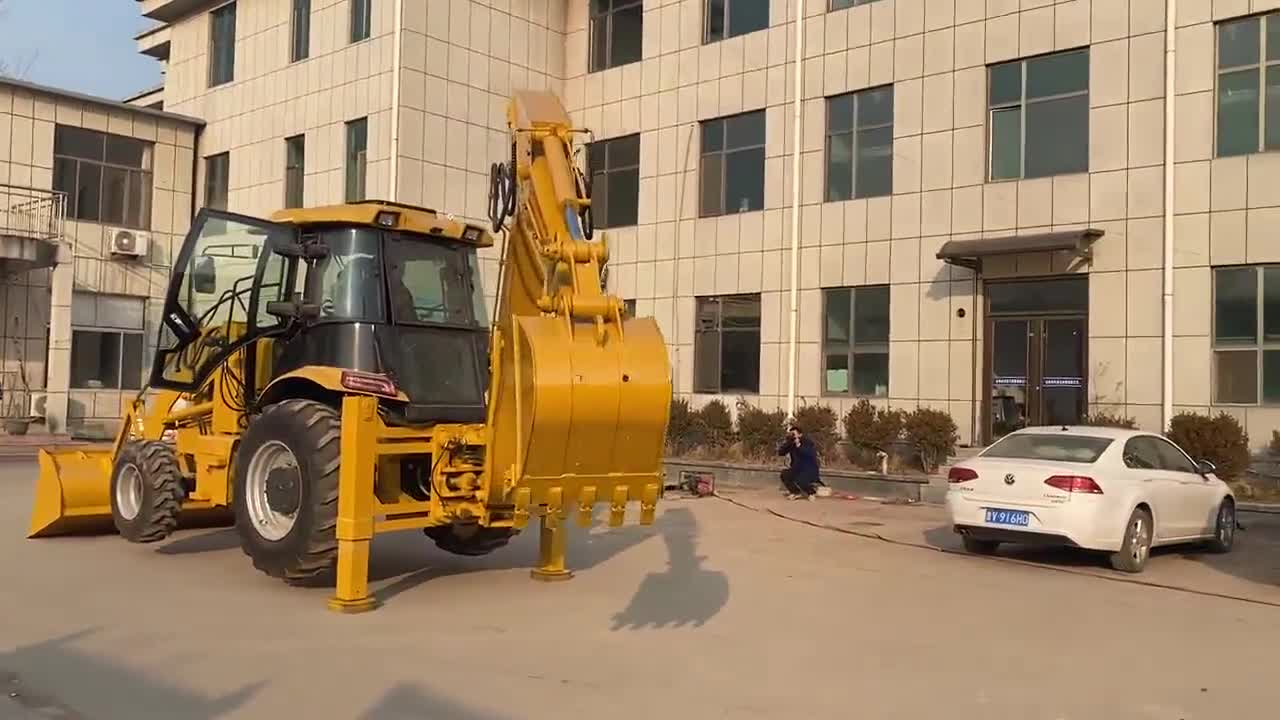

Manufacturer-supplied KD30-25B product demonstration.
02 / KD30-25B
Technical specifications
KD30-25B specifications for the configuration shown. Final configuration and technical data are confirmed in the order.
| Rated front bucket load | 3,000 kg |
|---|---|
| Front bucket capacity | 1.0 m³ |
| Dumping height | 2,660 mm |
| Dumping distance | 780 mm |
| Total cycle time | ≤8.8 s |
| Maximum bucket breakout force | 53.3 kN |
| Backhoe bucket capacity | 0.25 m³ |
|---|---|
| Maximum dumping height | 3,545 mm |
| Maximum digging depth | 4,345 mm |
| Maximum digging radius | 5,385 mm |
| Maximum arm breakout force | 29.6 kN |
| Engine alternatives - supplier configuration | YUNNEI / Cummins (optional) |
|---|---|
| Rated engine power | 100 HP |
| Rated engine speed | 2,200 rpm |
| Supplier emissions label | China III |
| Maximum engine torque | 390 N·m |
| Drive | Four-wheel drive |
| Gearbox source figure - input speed / ratio | 2,200 rpm / 5.603 |
| Torque conversion ratio | 2.64 |
| Gearbox cooling | Air cooling |
| Front axle transmission ratio | 14.77 |
| Rear axle transmission ratio | 16.15 |
| Service brake | Wet brake |
| Brake operation | Mechanical |
| Overall dimensions (L × W × H) | 5,900 × 2,320 × 3,500 mm |
|---|---|
| Curb weight | 8,180 kg |
| Maximum travel speed | 36 km/h |
| Towing force | 58 kN |
| Front wheel track | 1,880 mm |
| Rear wheel track | 1,730 mm |
| Wheelbase | 2,170 mm |
| Turning radius | 3,950 mm |
| Gradeability | 17° |
| Front tire size | 20.5-16 |
| Rear tire size | 1670-24 |
03 / FAQ
Before you enquire
Which configuration is shown?
The technical table lists the supplied configuration. Engine alternatives, attachments and final specifications are confirmed in the order.
How is the final configuration confirmed?
Share your destination, application and configuration requirements. The final technical specifications confirmed in your order shall prevail.
