KONO DEERE / KD-10T
Crawler Dumper10,000 kg · Rated payload
KD-10T crawler dumper with a 10,000 kg rated payload, Cummins 6BTA-C160 engine rated at 160 HP, and 500 mm tracks.
01 / KD-10T

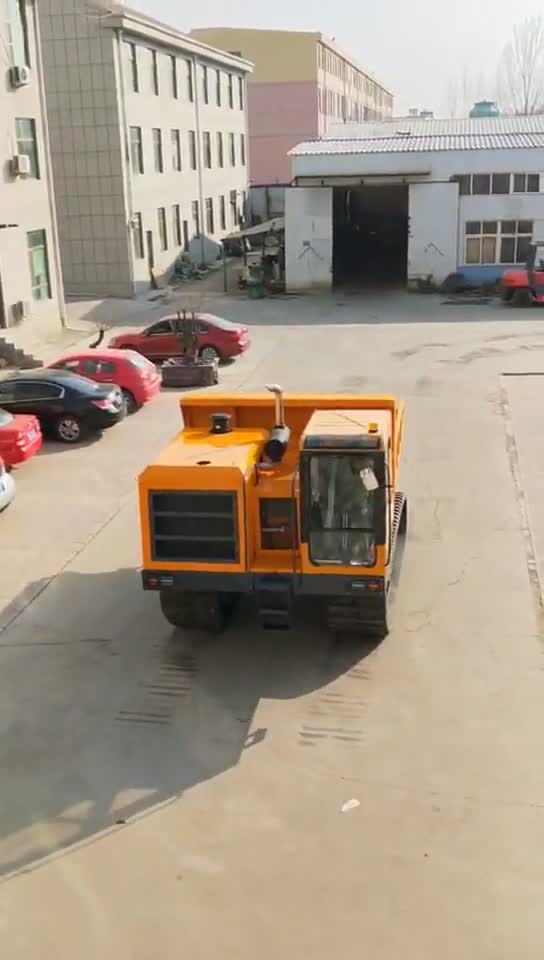

Product demonstration.
Shared series demonstration, also used for KD-15T. The configuration shown may differ; refer to the KD-10T specifications below.
02 / KD-10T
Technical specifications
KD-10T specifications for the configuration shown. Final configuration and technical data are confirmed in the order.
| Rated payload | 10,000 kg |
|---|---|
| Working weight | 17,000 kg |
| Cargo body dimensions (L × W × H) | 4,500 × 2,600 × 600 mm |
| Overall dimensions (L × W × H) | 6,800 × 2,600 × 2,900 mm |
| Engine - configuration shown | Cummins 6BTA-C160 |
|---|---|
| Rated engine power | 160 HP |
| Main hydraulic pump | Kawasaki K3V112 |
| Main control valve | Jinzhou Beifang |
| Hydraulic hoses - specified supplier | Shenyang Xiangsi |
| System working pressure | 31.5 MPa |
| Maximum system flow | 350 L/min |
| Travel assembly | Doosan TM30 |
|---|---|
| Track width | 500 mm |
| Travel speed | 3.5-8 km/h |
03 / FAQ
Before you enquire
Which configuration is listed for KD-10T?
The supplied specification lists a 10,000 kg rated payload and Cummins 6BTA-C160 engine rated at 160 HP. Final technical data and options are confirmed in the order.
How is the final configuration confirmed?
Share your destination, application and configuration requirements. The final technical specifications confirmed in your order shall prevail.
