Match the front-end loader to the material and loading height. Rated load is a mass limit; bucket capacity is a volume. Review the individual product configuration alongside the production-range comparison.
KONO DEERE / Wheel Loader
Wheel Loader
Explore wheel loaders for bucket loading and material handling. Compare rated load, bucket volume, engine power and dump height, with model pages and a range comparison.
What should you compare? ↓KONO DEERE / WHEEL LOADER RANGE
Compare the production range.
Compare the supplied configurations, then review the full technical data. Dedicated product specifications take precedence.
| Model | Rated load | Bucket capacity | Engine power | Maximum dump height |
|---|---|---|---|---|
| KD30 ↗ | 3,000 kg | 2.5 m³ | 92 kW | 2,993 mm |
| KD50 ↗ | 5,000 kg | 3 m³ | 162 kW | 3,142 mm |
| KD50F ↗ | 5,000 kg | 3 m³ | 162 kW | 3,142 mm |
| KD625B | 2,500 kg | 1.3 m³ | 92 kW | 3,650 mm |
| KD916 | 1,000 kg | 0.5 m³ | 37 kW | 3,200 mm |
| KD918 | 1,000 kg | 0.6 m³ | 37 kW | 3,200 mm |
| KD920 | 1,000 kg | 0.7 m³ | 42 kW | 3,200 mm |
| KD920T | 1,600 kg | 0.7 m³ | 55 kW | 3,200 mm |
| KD930 ↗ | 1,600 kg | 1 m³ | 65 kW | 3,250 mm |
| KD930L | 1,800 kg | 1 m³ | 76 kW | 3,500 mm |
| KD935 | 2,000 kg | 1 m³ | 92 kW | 3,500 mm |
| KD936A | 2,100 kg | 1.2 m³ | 92 kW | 3,500 mm |
| KD936B | 2,100 kg | 1.2 m³ | 92 kW | 3,400 mm |
KD30Full technical data
- Rated load
- 3,000 kg
- Bucket capacity
- 2.5 m³
- Maximum dumping height
- 2,993 mm
- Engine - configuration shown
- Deutz (Weichai) WP6G125E22
- Rated engine power
- 92 kW
- Maximum engine torque
- 515 N·m
- Fuel tank capacity
- 137 L
- Operating weight
- 9,700 kg
- Maximum dump reach
- 1,007 mm
- Maximum breakout force
- 127 kN
- Maximum traction force
- 97 kN
- Steering angle
- 36°
- Wheelbase
- 2,630 mm
- Tire size
- 17.5-25
- Gradeability - user confirmed
- 48%
- Minimum turning radius (outside tires)
- 5,097 mm
- Minimum turning radius (outside bucket)
- 5,901 mm
- Lifting time
- 4.83 s
- Discharge time
- 1.07 s
- Lowering time
- 3.25 s
- Total cycle time
- 9.15 s
- Hydraulic tank capacity
- 90 L
- Hydraulic system pressure
- 16.5 MPa
- Overall dimensions (L × W × H) - user confirmed
- 6,890 × 2,440 × 2,080 mm
KD50Full technical data
- Rated load
- 5,000 kg
- Machine weight
- 16,500 kg
- Bucket capacity
- 3 m³
- Maximum traction force
- ≥168 kN
- Maximum breakout force
- ≥170 kN
- Gradeability
- 30°
- Maximum dumping height
- 3,142 mm
- Maximum dump reach
- 1,250 mm
- Overall dimensions (L × W × H)
- 8,085 × 2,963 × 3,463 mm
- Minimum turning radius
- 6,732 mm
- Engine - configuration shown
- Weichai Steyr WD10G220E21
- Engine type
- In-line, water cooled, dry cylinder, direct injection
- Cylinders / bore × stroke
- 6 / 126 × 130 mm
- Rated engine power
- 162 kW
- Rated engine speed
- 2,400 rpm
- Maximum engine torque
- 890 N·m
- Minimum fuel consumption rate
- ≤215 g/kWh
- Torque converter
- YJ375
- Gearbox
- Planetary power shift
- Gear ranges
- 4 forward / 4 reverse
- Maximum travel speed
- 39 km/h
- Main transmission
- Spiral gear, first-stage reduction
- Final drive
- Single-stage planetary reduction
- Wheelbase
- 3,200 mm
- Wheel track
- 2,250 mm
- Minimum ground clearance
- 450 mm
- System working pressure
- 18 MPa
- Boom lifting time
- ≤5.1 s
- Total cycle time
- ≤9.3 s
- Fuel tank capacity
- 260 L
- Hydraulic tank capacity
- 300 L
- Automatic levelling
- Yes
- Service brake
- Air-over-hydraulic disc brake on all four wheels
- Parking brake
- Manual
- Tire size
- 23.5-25
- Front tire pressure
- 0.39 ± 0.01 MPa
- Rear tire pressure
- 0.33 ± 0.01 MPa
- Steering type
- Articulated load-sensing hydraulic
- Steering angle
- 38° each side
KD50FFull technical data
- Rated load
- 5,000 kg
- Machine weight
- 16,500 kg
- Bucket capacity
- 3 m³
- Maximum traction force
- ≥168 kN
- Maximum breakout force
- ≥170 kN
- Gradeability
- 30°
- Maximum dumping height
- 3,142 mm
- Maximum dump reach
- 1,250 mm
- Overall dimensions (L × W × H)
- 8,085 × 2,963 × 3,463 mm
- Minimum turning radius
- 6,732 mm
- Engine - configuration shown
- Weichai Steyr WD10G220E23
- Engine type
- In-line, water cooled, dry cylinder, direct injection
- Cylinders / bore × stroke
- 6 / 126 × 130 mm
- Rated engine power
- 162 kW
- Rated engine speed
- 2,400 rpm
- Maximum engine torque
- 890 N·m
- Minimum fuel consumption rate
- ≤215 g/kWh
- Torque converter
- YJ375
- Gearbox
- Planetary power shift
- Gear ranges
- 4 forward / 4 reverse
- Maximum travel speed
- 39 km/h
- Main transmission
- Spiral gear, first-stage reduction
- Final drive
- Single-stage planetary reduction
- Wheelbase
- 3,200 mm
- Wheel track
- 2,250 mm
- Minimum ground clearance
- 450 mm
- System working pressure
- 18 MPa
- Boom lifting time
- ≤5.1 s
- Total cycle time
- ≤9.3 s
- Fuel tank capacity
- 260 L
- Hydraulic tank capacity
- 300 L
- Automatic levelling
- Yes
- Service brake
- Air-over-hydraulic disc brake on all four wheels
- Parking brake
- Manual
- Tire size
- 23.5-25
- Front tire pressure
- 0.39 ± 0.01 MPa
- Rear tire pressure
- 0.33 ± 0.01 MPa
- Steering type
- Articulated load-sensing hydraulic
- Steering angle
- 38° each side
KD625BFull technical data
- Bucket capacity
- 1.3 m³
- Rated loading weight
- 2,500 kg
- Maximum dump height
- 3,650 mm
- Engine power
- 92 kW
- Engine
- Deutz
- Engine model
- WP6G125E22
- Axle
- 25
- Torque converter
- 300 separated
- Machine weight
- 7,800 kg
- Thickness of Boom
- 35 mm
- Tire size
- 17.5-25
- Width of bucket
- 2.27m
- Overall size
- 6,800 × 2,140 × 2,900 mm
KD916Full technical data
- Bucket capacity
- 0.5 m³
- Rated loading weight
- 1,000 kg
- Maximum dump height
- 3,200 mm
- Engine power
- 37 kW
- Engine
- YUNNEI
- Engine model
- YN490
- Axle
- Isuzu
- High/Low speed
- 3+2
- Machine weight
- 3,500 kg
- Thickness of Boom
- 25 mm
- Control
- J pilot (single rod operation)
- Tire size
- 20.5-16
- Width of bucket
- 1.7m
- Overall size
- 5,600 × 1,810 × 2,750 mm
KD918Full technical data
- Bucket capacity
- 0.6 m³
- Rated loading weight
- 1,000 kg
- Maximum dump height
- 3,200 mm
- Engine power
- 37 kW
- Engine
- YUNNEI
- Engine model
- YN490
- Axle
- Isuzu
- Torque converter
- 265
- Machine weight
- 3,550 kg
- Thickness of Boom
- 25 mm
- Control
- J pilot (single rod operation)
- Tire size
- 20.5-16
- Width of bucket
- 1.75m
- Overall size
- 5,600 × 1,810 × 2,750 mm
KD920Full technical data
- Bucket capacity
- 0.7 m³
- Rated loading weight
- 1,000 kg
- Maximum dump height
- 3,200 mm
- Engine power
- 42 kW
- Engine
- YUNNEI
- Engine model
- YN490
- Axle
- Small Wheel Side Reducer
- Torque converter
- 265
- Machine weight
- 3,750 kg
- Thickness of Boom
- 25 mm
- Control
- J pilot (single rod operation)
- Tire size
- 23.5-16
- Width of bucket
- 1.80m
- Overall size
- 5,600 × 1,860 × 2,750 mm
KD920TFull technical data
- Bucket capacity
- 0.7 m³
- Rated loading weight
- 1,600 kg
- Maximum dump height
- 3,200 mm
- Engine power
- 55 kW
- Engine
- YUNNEI
- Engine model
- YN490ZY
- Axle
- Small Wheel Side Reducer
- Torque converter
- 265F
- Machine weight
- 3,900 kg
- Thickness of Boom
- 25 mm
- Control
- J pilot (single rod operation)
- Tire size
- 23.5-16
- Width of bucket
- 1.80m
- Overall size
- 5,600 × 1,860 × 2,750 mm
KD930Full technical data
- Bucket capacity
- 1 m³
- Rated load
- 1,600 kg
- Maximum dumping height
- 3,250 mm
- Rated engine power
- 65 kW
- Engine - configuration shown
- YUNNEI
- Engine model
- YN4100ZY
- Axle
- Medium wheel-side reduction axle
- Torque converter
- 280F
- Machine weight
- 4,700 kg
- Boom thickness
- 30 mm
- Control
- J pilot control (single-lever operation)
- Tire size
- 16/70-20
- Bucket width
- 2,000 mm
- Overall dimensions (L × W × H)
- 5,950 × 2,070 × 2,850 mm
- Gradeability
- 30%
KD930LFull technical data
- Bucket capacity
- 1 m³
- Rated loading weight
- 1,800 kg
- Maximum dump height
- 3,500 mm
- Engine power
- 76 kW
- Engine
- YUNNEI
- Engine model
- YN4102ZY
- Axle
- Heavy Wheel Side Reducer
- Torque converter
- 290F
- Machine weight
- 4,900 kg
- Thickness of Boom
- 30 mm
- Control
- J pilot (single rod operation)
- Tire size
- 16/70-20
- Width of bucket
- 2.00m
- Overall size
- 6,050 × 2,070 × 2,950 mm
KD935Full technical data
- Bucket capacity
- 1 m³
- Rated loading weight
- 2,000 kg
- Maximum dump height
- 3,500 mm
- Engine power
- 92 kW
- Engine
- YUNNEI
- Engine model
- YN4108ZY
- Axle
- Heavy Wheel Side Reducer
- Torque converter
- 290 separated
- Machine weight
- 6,000 kg
- Thickness of Boom
- 35 mm
- Control
- J pilot (single rod operation)
- Tire size
- 16/70-20
- Width of bucket
- 2.25m
- Overall size
- 6,500 × 2,100 × 2,950 mm
KD936AFull technical data
- Bucket capacity
- 1.2 m³
- Rated loading weight
- 2,100 kg
- Maximum dump height
- 3,500 mm
- Engine power
- 92 kW
- Engine
- YUNNEI
- Engine model
- YN4108ZY
- Axle
- Heavy Wheel Side Reducer
- Torque converter
- 290 separated
- Machine weight
- 6,200 kg
- Thickness of Boom
- 35 mm
- Control
- J pilot (single rod operation)
- Tire size
- 16/70-24
- Width of bucket
- 2.25m
- Overall size
- 6,500 × 2,100 × 2,950 mm
KD936BFull technical data
- Bucket capacity
- 1.2 m³
- Rated loading weight
- 2,100 kg
- Maximum dump height
- 3,400 mm
- Engine power
- 92 kW
- Engine
- Deutz
- Engine model
- WP6G125E22
- Axle
- Heavy Wheel Side Reducer
- Torque converter
- 290 separated
- Machine weight
- 6,500 kg
- Thickness of Boom
- 35 mm
- Control
- J pilot (single rod operation)
- Tire size
- 16/70-24
- Width of bucket
- 2.25m
- Overall size
- 6,500 × 2,100 × 2,950 mm
KONO DEERE / KD30
KD30
3,000 kg · Rated load
KD30 — Wheel Loader. 3,000 kg · 92 kW · 2.5 m³.

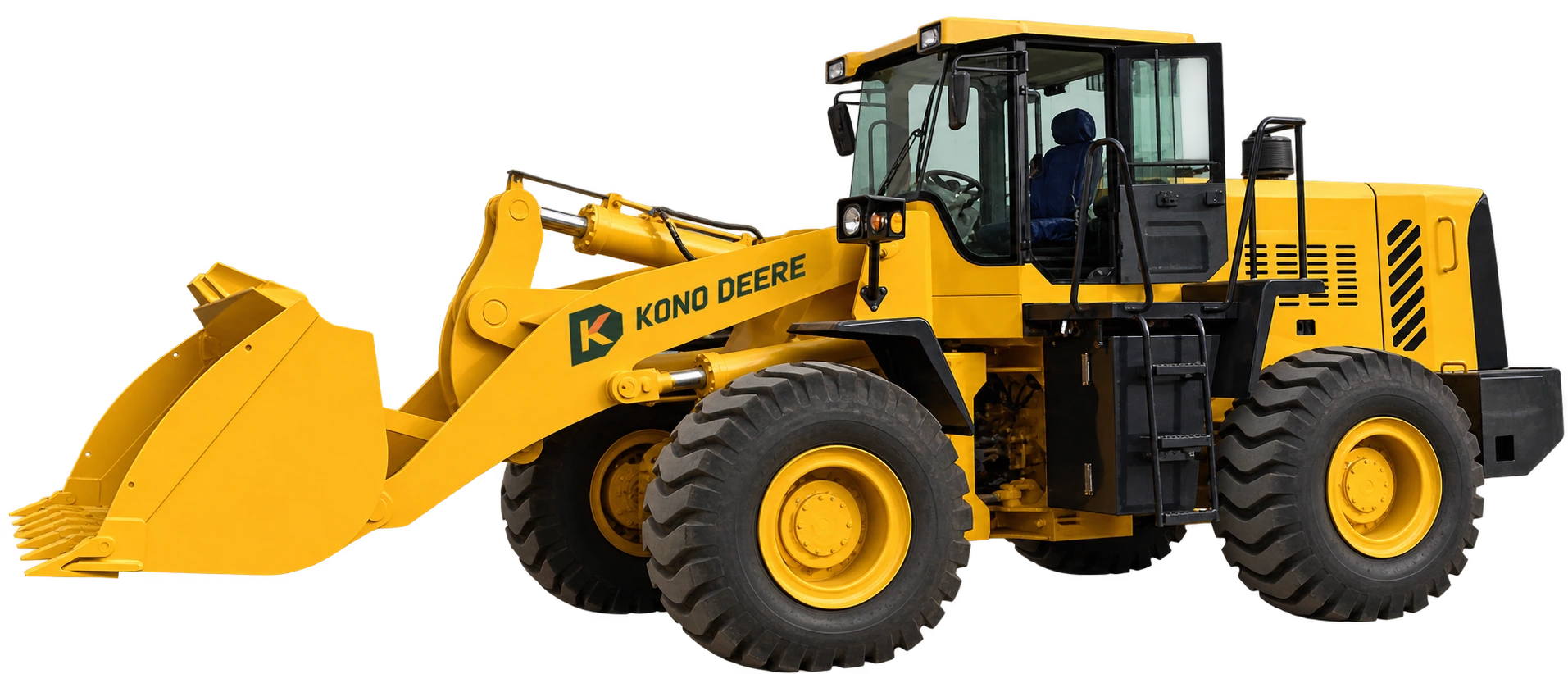

KONO DEERE / KD50
KD50
5,000 kg · Rated load
KD50 — Wheel Loader. 5,000 kg · 162 kW · 3 m³.

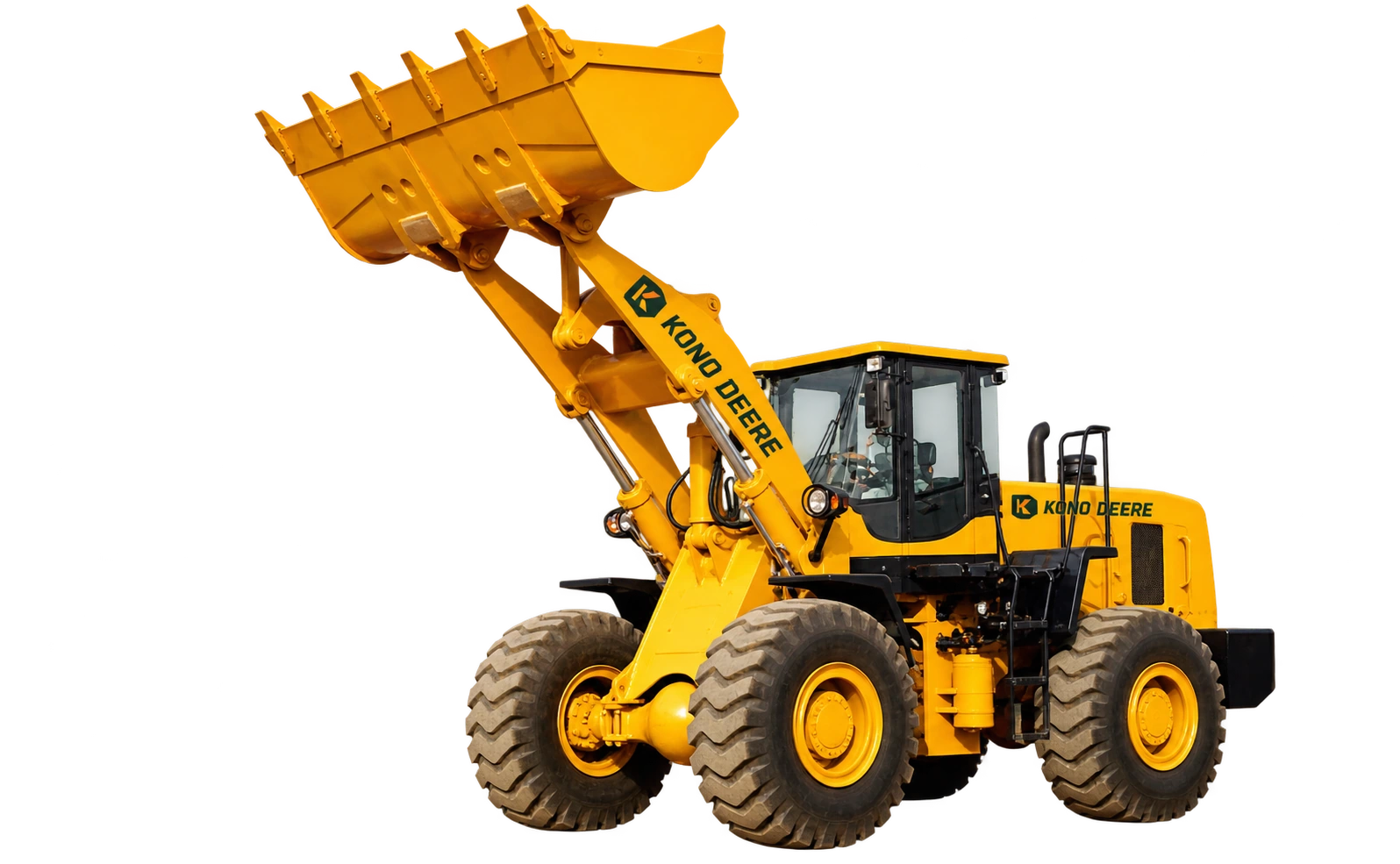

KONO DEERE / KD50F
KD50F
5,000 kg · Rated load
KD50F — Wheel Loader. 5,000 kg · 162 kW · 3 m³.
KONO DEERE / KD930
KD930
1,600 kg · Rated load
KD930 — Wheel Loader. 1,600 kg · 65 kW · 1 m³.
Wheel Loaders
Choose for the work ahead.
Continue your selection
Review model-specific technical data, see equipment at work and discuss the configuration with our team.
LET’S START WITH YOUR PROJECT
Your next machine
starts with a conversation.
Tell us what you need to move, mix or lift. We’ll use that brief to guide the equipment discussion.
Speak directly with our team
Discuss your equipment requirements, configuration or after-sales questions.
WhatsApp+86 186 6143 3121Emailinfo@kono-deere.com
