KONO DEERE / KD8600
Sugarcane Loader800 kg Grab Capacity

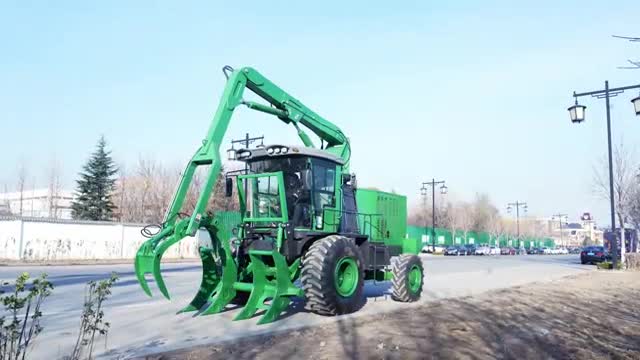

KD8600 sugarcane loader with an 800 kg grab capacity and a Cummins C150 engine rated at 150 HP. Maximum grapple height is 4,800 mm, maximum dumping height is 5,100 mm and operating weight is 8,800 kg.
01 / KD8600
KD9800 reference video
Shared KD9800 product video, used as a reference for the KD8600 page. The machine shown is KD9800; KD8600 specifications are listed below.
02 / KD8600
Technical specifications
KD8600 specifications for the configuration shown. Final configuration and technical data are confirmed in the order.
| Maximum grapple height | 4,800 mm |
|---|---|
| Maximum dumping height | 5,100 mm |
| Rated grab capacity | 800 kg |
| Maximum grapple radius | 5,300 mm |
| Grapple opening size | 1,500 mm |
| Engine — configuration shown | Cummins C150 |
|---|---|
| Rated power | 150 HP |
| Overall dimensions (L × W × H) | 6,360 × 2,450 × 3,260 mm |
|---|---|
| Machine weight | 8,800 kg |
| Minimum ground clearance | 520 mm |
| Wheelbase | 3,070 mm |
|---|---|
| Tire spacing | 2,050 mm |
| Tire size | 23.5-25 |
| Minimum turning radius | 8,855 mm |
03 / FAQ
Before you enquire
Which model is shown in the video?
Shared KD9800 product video, used as a reference for the KD8600 page. The machine shown is KD9800; KD8600 specifications are listed below.
Which engine and power are specified?
The supplied KD8600 document lists a Cummins C150 engine and 150 horsepower. Power is retained in HP as supplied.
How is the final configuration confirmed?
Share your destination, application and configuration requirements. The final technical specifications confirmed in your order shall prevail.
