KONO DEERE / KD-T3007

Telehandler3,000 kg · Rated load

KD-T3007 telehandler with a 3,000 kg rated load, 7 m maximum lift height and 76 kW engine. 2-section telescopic boom, four-wheel drive and front-wheel, four-wheel and crab steering.

Enquire about KD-T3007 ↗Watch product video ▷

3,000 kgRated load

7 mMaximum lift height

76 kWRated engine power

01 / KD-T3007

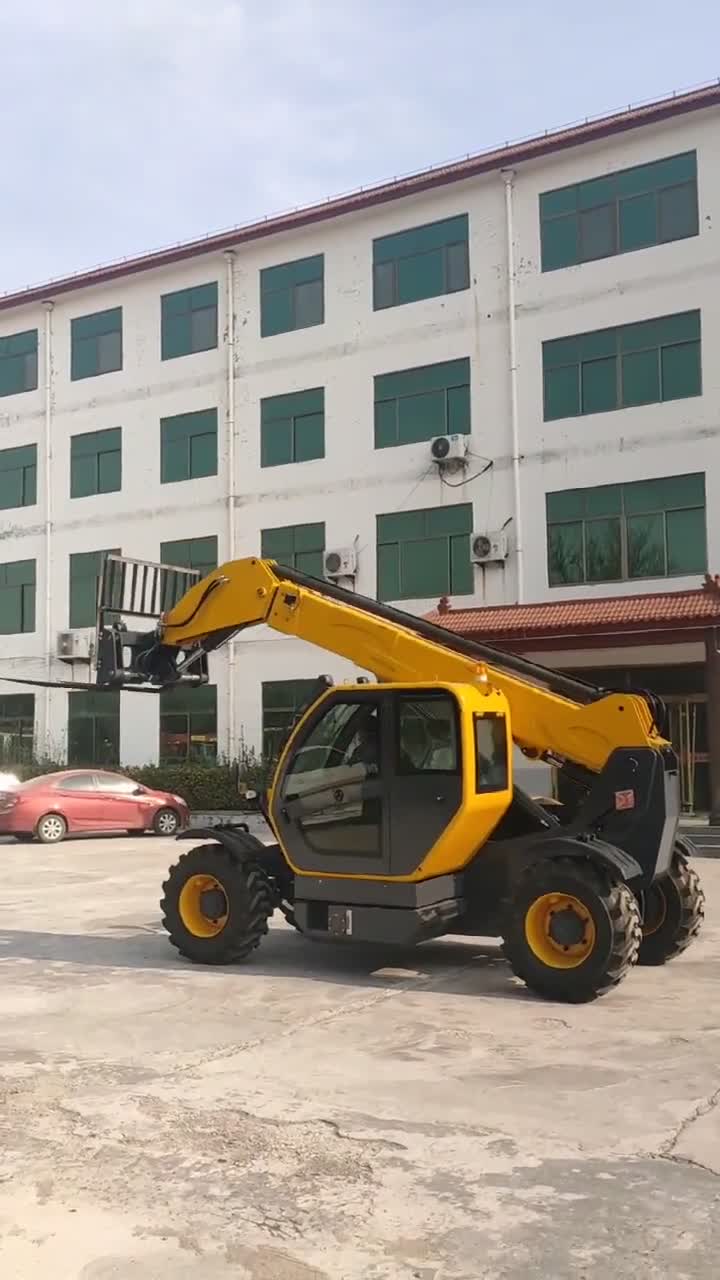

KD-T3007

Shared telehandler series demonstration. Configuration shown may differ; refer to the model-specific technical table.

Open video directly ↗Download video ↓

02 / KD-T3007

Technical specifications

KD-T3007 specifications for the configuration shown. Final configuration and technical data are confirmed in the order.

Technical specifications / PDF ↗PDF ↓ EN

01Load & lift
Rated load	3,000 kg
Maximum lift height	7 m
Telescopic boom sections	2
Fork length and type	1,220 mm sliding forks

02Engine & controls
Engine - configuration shown	YUNNEI YN38GBZ
Rated engine power	76 kW
Hydraulic control	Solenoid-valve operation

03Chassis & configuration
Drive	Four-wheel drive
Steering modes	Front-wheel / four-wheel / crab
Transmission	High/low-range transmission, 4 forward / 4 reverse gears
Tire size	405/70-20
Quick coupler	Hydraulic
Frame material	355 manganese-steel plate
Boom material	BS1000 steel
Single-axle load rating (supplier figure)	10,000 kg

Technical configuration / English

Standard configuration

LED work lights
Window-breaking hammer
Fire extinguisher
Rear sliding window
10-inch driving/reversing camera display
Electronically controlled travel
Automatic fork levelling
Four-wheel drive
Front-wheel, four-wheel and crab steering modes
Plate-fin radiator
Fore-aft adjustable steering column with large instrument housing
Adjustable deluxe operator seat
Protected Xiangliu hydraulic hoses
Frame made from 355 manganese-steel plate
BS1000 steel telescopic boom
1,220 mm sliding forks
Standard cab
Electrically controlled boom extension
Rear and front-right cameras
Air-braked axles

Available options

Engine alternatives: China II — Yuchai 77.3 kW / Cummins 4BT3.9-C100 75 kW; Euro III (exact non-road stage not confirmed) — Yanmar 63 kW / Cummins QSB3.9-C100; EU Stage V — Perkins 74.5 kW / Yuchai 74 kW / YUNNEI 74 kW / Fiat 55 kW; EPA4 / US EPA Tier 4 — Kohler 55.4 kW / QSF2.8 55 kW. Options are supplier-listed alternatives. Exact engine, emissions documentation, compatibility and final configuration require order confirmation.
Load-sensing electro-proportional valve control system
Heating and cooling air conditioning
Load-moment limiting system
Solid tires
16/70-24 tires
400/70R24 tubeless tires
Diesel cab heater

03 / FAQ

Before you enquire

Which configuration is shown?

The technical table lists the supplied configuration. Engine alternatives, attachments and final specifications are confirmed in the order. Request the model-specific load chart for permitted load at each height and reach. Rated load and maximum lift height are separate specifications.

How is the final configuration confirmed?

Share your destination, application and configuration requirements. The final technical specifications confirmed in your order shall prevail.
