What should you compare?
Choose by concrete yield per batch, access dimensions and frame structure. Mixing drum volume and finished concrete output are different figures; compare the model-specific values before selecting a mobile mixer.
KONO DEERE / Equipment
Self-loading concrete mixers
Compare self-loading concrete mixer trucks for on-site concrete production. Explore 1.0–5.0 m³ batch capacities, rigid and articulated frames, videos and technical data.
What should you compare? ↓
KONO DEERE / KD1000

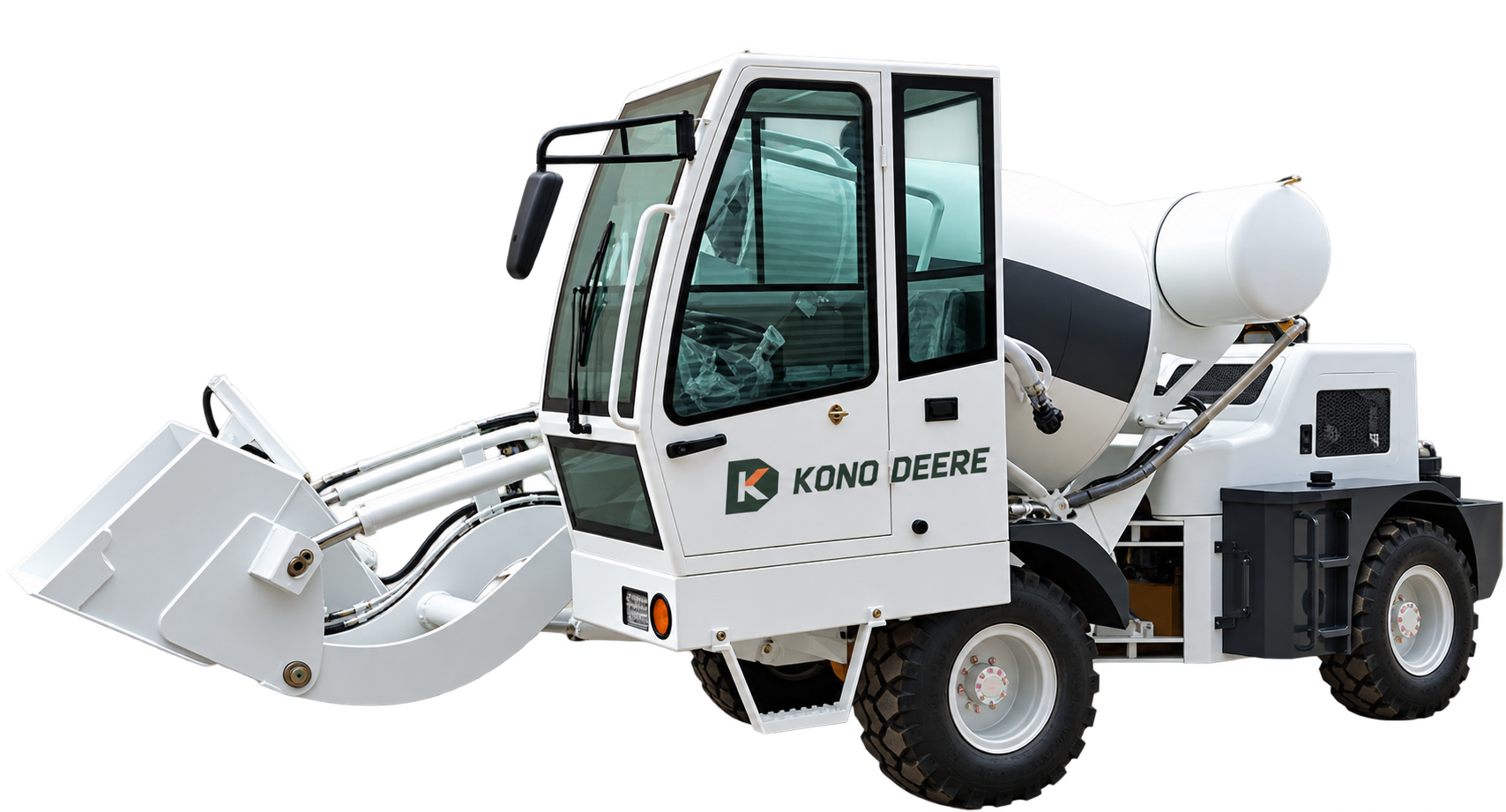

KD1000
1.0 CBM Capacity
KD1000 self-loading concrete mixer produces 1.0 m³ per batch with a 1.6 m³ drum. The supplied configuration lists a 55 kW YUNNEI engine, four-wheel drive, center steering and 4,500 kg machine weight.
KONO DEERE / KD1500
KD1500
1.5 CBM Capacity
KD1500 self-loading concrete mixer produces 1.5 m³ per batch with a 2.5 m³ drum. The supplied configuration lists a 76 kW YUNNEI engine, four-wheel drive, center steering and 4,800 kg machine weight.
KONO DEERE / KD2000
KD2000
2.0 CBM Capacity
KD2000 self-loading concrete mixer produces 2.0 m³ per batch with a 2.8 m³ drum. The supplied configuration lists a 76 kW YUNNEI engine, four-wheel drive, center steering and 4,800 kg machine weight.
KONO DEERE / KD2600
KD2600
2.6 CBM Capacity
KD2600 produces 2.6 m³ of concrete per batch with a 3.9 m³ drum and a 0.55 m³ loading bucket. The supplied configuration lists a 76 kW YUNNEI engine, continuously variable transmission, four-wheel drive and center steering.
KONO DEERE / KD3000
KD3000
3.0 CBM Capacity
KD3000 produces 3.0 m³ of concrete per batch with a 4.5 m³ drum and a 0.55 m³ loading bucket. The supplied configuration lists a 76 kW YUNNEI YN38GBZ engine, continuously variable transmission, four-wheel drive and center steering.
KONO DEERE / KD3500 · Articulated frame
KD3500 · Articulated frame
3.5 CBM Capacity
KD3500 articulated-frame self-loading concrete mixer: 3.5 m³ concrete yield per batch, 5.4 m³ drum, 85 kW Yuchai YCD4J22T-115 diesel engine, 660 L water tank and 7,500 kg machine weight. Front dual tires and rear tires have separate specifications.
KONO DEERE / KD3500 · Rigid frame
KD3500
3.5 CBM Capacity
KD3500 is a rigid-frame self-loading concrete mixer with 3.5 m³ concrete yield per batch and a 5.4 m³ drum. The supplied configuration lists an 85 kW Yuchai YCD4J22T-115 water-cooled diesel engine, hydraulic transmission, four-wheel drive and two-wheel steering.
FEATURED MODEL
KD4000
4.0 CBM Capacity
4.0 m³ of concrete per batch, with a 5.5 m³ mixing drum. The KD4000 combines four-wheel drive, a 91 kW Yuchai engine and 270° discharge rotation for on-site concrete work.
4.0 m³Concrete yield per batch
91 kWRated engine power
4 × 4Drive system
KONO DEERE / KD5000
KD5000
5.0 CBM Capacity
Produce 5.0 m³ of concrete per batch with a 7.2 m³ mixing drum. The supplied KD5000 configuration lists a 92 kW Yuchai / Weichai diesel engine, CVT, a 0.8 m³ loading bucket and electronic weighing.
5.0 m³Concrete yield per batch
7.2 m³Mixing drum volume
92 kWRated engine power
Compare mixer specifications
| Technical specifications | KD1000 ↗ | KD1500 ↗ | KD2000 ↗ | KD2600 ↗ | KD3000 ↗ | KD3500 · Articulated frame ↗ | KD3500 · Rigid frame ↗ | KD4000 ↗ | KD5000 ↗ |
|---|---|---|---|---|---|---|---|---|---|
| Concrete yield per batch | 1.0 m³ | 1.5 m³ | 2.0 m³ | 2.6 m³ | 3.0 m³ | 3.5 m³ | 3.5 m³ | 4.0 m³ | 5.0 m³ |
| Mixing drum volume | 1.6 m³ | 2.5 m³ | 2.8 m³ | 3.9 m³ | 4.5 m³ | 5.4 m³ | 5.4 m³ | 5.5 m³ | 7.2 m³ |
| Rated power | 55 kW | 76 kW | 76 kW | 76 kW | 76 kW | 85 kW | 85 kW | 91 kW | 92 kW |
| Machine weight | 4,500 kg | 4,800 kg | 4,800 kg | 7,000 kg | 7,000 kg | 7,500 kg | 7,200 kg | 7,500 kg | 8,500 kg |
Self-Loading Concrete Mixer Trucks
Choose for the work ahead.
Continue your selection
Review model-specific technical data, see equipment at work and discuss the configuration with our team.
