KONO DEERE / KD2600

Self-Loading Concrete Mixer Truck2.6 CBM Capacity

KD2600 produces 2.6 m³ of concrete per batch with a 3.9 m³ drum and a 0.55 m³ loading bucket. The supplied configuration lists a 76 kW YUNNEI engine, continuously variable transmission, four-wheel drive and center steering.

Enquire about KD2600 Watch product video ▷

2.6 m³Concrete yield per batch

3.9 m³Mixing drum volume

76 kWRated engine power

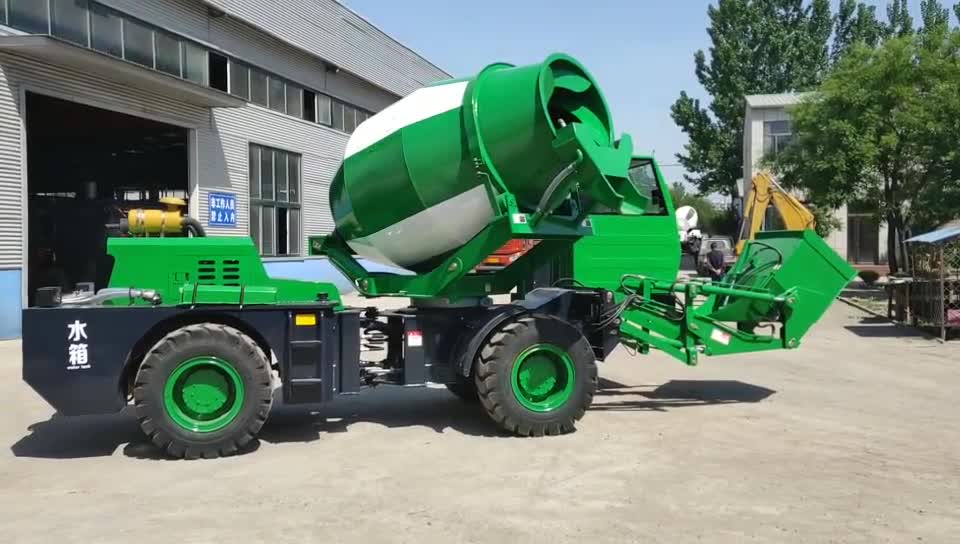

KONO DEERE KD2600 — Self-Loading Concrete Mixer Truck — Manufacturer-supplied KD2600 product photo

01 / KD2600

See KD2600 in motion.

KD2600 product video supplied by KONO DEERE.

Open video directly ↗Download video ↓

02 / KD2600

Technical specifications

Data from the manufacturer-supplied KD2600 specification. The engine and equipment listed describe the supplied configuration; the final order confirms the machine you receive.

View brochure online ↗Download PDF ↓English document

01Mixing & output
Concrete yield per batch	2.6 m³
Mixing drum volume	3.9 m³
Productivity	Up to 4 batches per hour
Bucket capacity	0.55 m³

02Engine & hydraulics
Engine brand	YUNNEI
Rated power	76 kW
Rated engine speed	2,400 rpm

03Travel & chassis
Transmission	Continuously variable transmission (CVT)
Drive / steering	4-wheel drive / center steering
Tire size	16/70-20
Low travel speed	0–8 km/h
High travel speed	0–16 km/h
Discharge rotation	270°

04Dimensions & tanks
Machine weight	7,000 kg
Overall dimensions (L × W × H)	7,400 × 2,400 × 3,200 mm
Electronic weighing	Listed in supplied specification
Water measurement system	Listed in supplied specification
High-pressure cleaning water	Listed in supplied specification
Cab air conditioning	Listed in supplied specification

03 / FAQ

Before you enquire

What does the supplied KD2600 configuration include?

The supplied specification lists 2.6 m³ concrete yield, a 3.9 m³ drum, 0.55 m³ bucket, a 76 kW YUNNEI engine and CVT. Weighing, water measurement, high-pressure cleaning water and cab air conditioning are also listed; confirm final equipment in the order.
