KONO DEERE / KD3500 · Articulated frame

Self-Loading Concrete Mixer Truck — Articulated frame3.5 CBM Capacity

KD3500 articulated-frame self-loading concrete mixer: 3.5 m³ concrete yield per batch, 5.4 m³ drum, 85 kW Yuchai YCD4J22T-115 diesel engine, 660 L water tank and 7,500 kg machine weight. Front dual tires and rear tires have separate specifications.

Enquire about KD3500 Watch product video ▷

3.5 m³Concrete yield per batch

5.4 m³Mixing drum volume

85 kWRated engine power

KONO DEERE KD3500 — Self-Loading Concrete Mixer Truck — Articulated frame — Manufacturer-supplied KD3500 articulated-frame product photo

01 / KD3500

KD3500 / Articulated frame

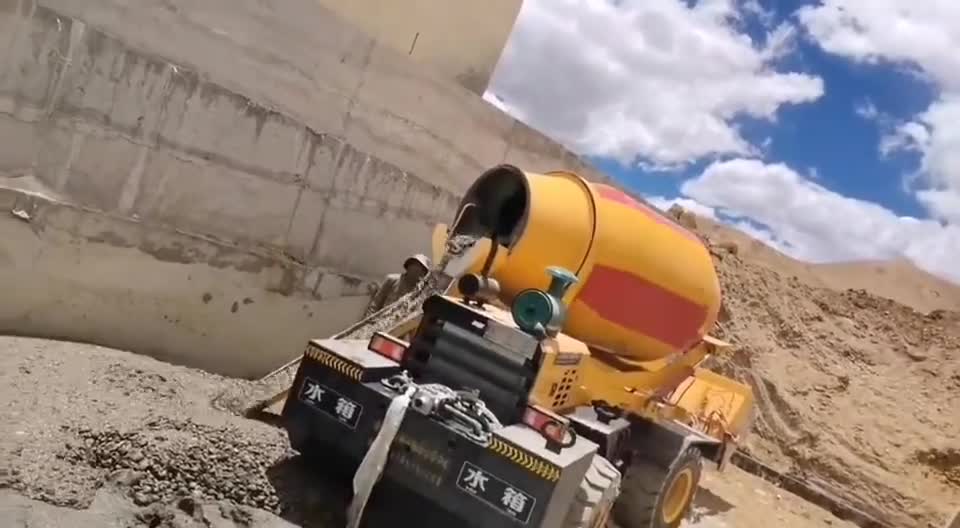

KD3500 articulated-frame working video supplied by KONO DEERE.

Open video directly ↗Download video ↓

02 / KD3500

Technical specifications

Data from the manufacturer-supplied KD3500 specification. The engine and equipment listed describe the supplied configuration; the final order confirms the machine you receive.

View brochure online ↗Download PDF ↓English document

01Mixing & loading
Concrete yield per batch	3.5 m³
Mixing drum volume	5.4 m³
Productivity	Up to 4 batches per hour
Discharge rotation	270°
Loading bucket / gate	600 L / hydraulic gate
Drum lift	Listed in supplied specification

02Engine
Engine brand	Yuchai
Engine model	YCD4J22T-115
Engine type	Water-cooled diesel
Rated power	85 kW

03Drive & travel
Transmission	Hydraulic
Drive / steering	4-wheel drive / 2-wheel steering
Front tires (dual)	1000-20
Rear tires	16/70-20
Low travel speed	0–8 km/h
High travel speed	0–16 km/h

04Dimensions & equipment
Water tank	660 L
Machine weight	7,500 kg
Overall dimensions (L × W × H)	7,420 × 2,400 × 2,800 mm
Frame construction	Articulated frame
Operating control	One joystick for main functions
Electronic weighing	Listed in supplied specification
Reversing cameras	Dual reversing cameras
Cab air conditioning	Listed in supplied specification

05Engine detail
Rated engine speed	2,600 rpm
Bore × stroke	105 × 125 mm
Maximum torque / speed	390 N·m / 2,800 rpm
Engine construction	4-cylinder, 4-stroke, inline, direct injection, water-cooled, turbocharged

06Hydraulic pump detail
Mixing motor / hydraulic pump brand	Rexroth
Dual hydraulic pump origin	Made in China
Pump rated speed	2,400 rpm
Pump displacement	80/40 ml/rev

03 / FAQ

Before you enquire

How does this version differ from the rigid-frame KD3500?

This articulated-frame version lists 7,500 kg weight, 7,420 × 2,400 × 2,800 mm dimensions, a 660 L water tank, dual 1000-20 front tires and 16/70-20 rear tires. Use this page’s configuration and working video for this version; the rigid-frame version has a separate page.
