KONO DEERE / KD3500 · Rigid frame

Self-Loading Concrete Mixer Truck3.5 CBM Capacity

KD3500 is a rigid-frame self-loading concrete mixer with 3.5 m³ concrete yield per batch and a 5.4 m³ drum. The supplied configuration lists an 85 kW Yuchai YCD4J22T-115 water-cooled diesel engine, hydraulic transmission, four-wheel drive and two-wheel steering.

Enquire about KD3500 Watch product video ▷

3.5 m³Concrete yield per batch

5.4 m³Mixing drum volume

85 kWRated engine power

KONO DEERE KD3500 — Self-Loading Concrete Mixer Truck — KD3500 product branding preview

01 / KD3500

KD3500 / KD4000

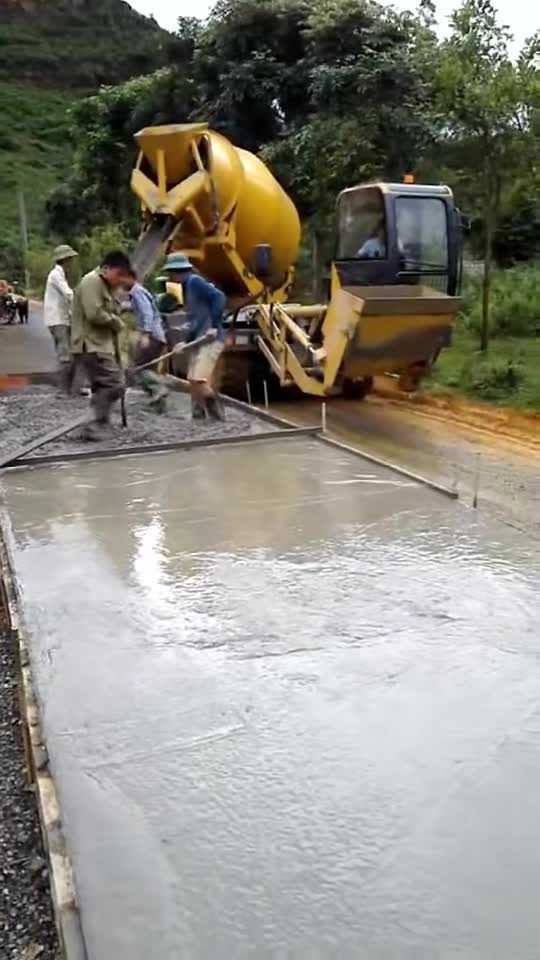

KD4000 same-series reference video. KD3500 specifications are listed below.

Open video directly ↗Download video ↓

02 / KD3500

Technical specifications

Data from the manufacturer-supplied KD3500 specification. The engine and equipment listed describe the supplied configuration; the final order confirms the machine you receive.

View brochure online ↗Download PDF ↓English document

01Mixing & operation
Concrete yield per batch	3.5 m³
Mixing drum volume	5.4 m³
Productivity	Up to 4 batches per hour
Weighing system origin	Made in China
Discharge rotation	270°

02Engine & drivetrain
Engine brand	Yuchai
Engine model	YCD4J22T-115
Engine type	Water-cooled diesel
Rated power	85 kW
Transmission	Hydraulic
Drive / steering	4-wheel drive / 2-wheel steering
Tire size	16/70-20

03Travel speeds
Forward F1	1–8 km/h
Forward F2	8–25 km/h
Reverse R1	1–8 km/h
Reverse R2	8–15 km/h

04Dimensions & weight
Frame construction	Rigid frame
Operating control	JOYMIX — one joystick for main functions
Machine weight	7,200 kg
Overall dimensions (L × W × H)	7,500 × 2,500 × 3,200 mm

03 / FAQ

Before you enquire

Are the photo and video specific to KD3500?

The product photo shows KD3500 with a preview of the approved KONO DEERE branding. The video is a KD4000 same-series reference supplied at the manufacturer’s request. Use KD3500 specifications and confirm the final configuration in your order.
