KONO DEERE / KD1500

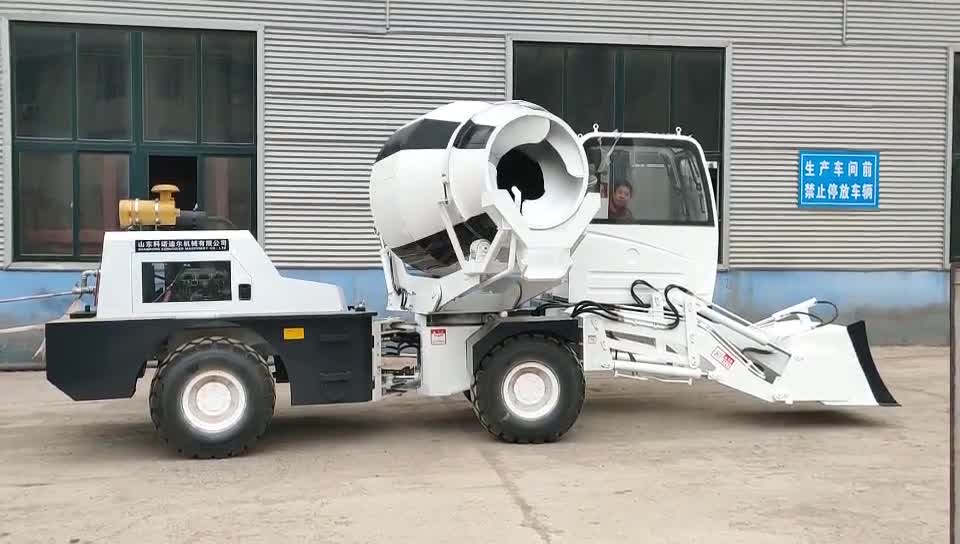

Self-Loading Concrete Mixer Truck1.5 CBM Capacity

KD1500 self-loading concrete mixer produces 1.5 m³ per batch with a 2.5 m³ drum. The supplied configuration lists a 76 kW YUNNEI engine, four-wheel drive, center steering and 4,800 kg machine weight.

Enquire about KD1500 Watch product video ▷

1.5 m³Concrete yield per batch

2.5 m³Mixing drum volume

76 kWRated engine power

01 / KD1500

KD1500

Manufacturer-supplied reference video shared by KD1500 and KD2000. Use the specifications for the selected model.

Open video directly ↗Download video ↓

02 / KD1500

Technical specifications

Data from the manufacturer-supplied KD1500 specification. The engine and equipment listed describe the supplied configuration; the final order confirms the machine you receive.

View brochure online ↗Download PDF ↓English document

01Mixing & output
Concrete yield per batch	1.5 m³
Mixing drum volume	2.5 m³
Drum rotation speed	0–10 rpm
Productivity	Up to 4 batches per hour

02Engine & travel
Engine brand	YUNNEI
Rated engine power	76 kW
Rated engine speed	2,400 rpm
Drive / steering	4-wheel drive / center steering
Chassis structure	Articulated structure
Tire size	20.5/70-16
High travel speed	0–16 km/h
Low travel speed	0–8 km/h

03Controls & equipment
Operating control	JOYMIX — one joystick for main functions
Weighing system	Listed in supplied specification
Cab air conditioning	Listed in supplied specification
Discharge rotation	270°

04Dimensions & tanks
Water tank	380 L
Machine weight	4,800 kg
Overall dimensions (L × W × H)	6,320 × 2,270 × 2,775 mm

03 / FAQ

Before you enquire

Which configuration is shown?

Use the technical specifications for this model and confirm the final equipment in your order. Cummins, EU Stage V and US EPA Tier 4 engine options depend on model compatibility.
